WINCO W85PTOS-03 85kW 1ph-120/240V 1000 RPM PTO Generator Features:

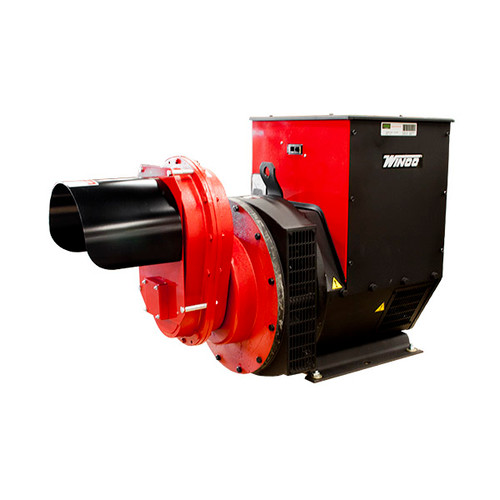

WINCO W85PTOS-03 85kW 1-Phase 120/240V 1000 RPM PTO Generator
The WINCO W85PTOS-03 85kW 1-Phase 120/240V PTO Generator is the ultimate power solution for agricultural, commercial, and industrial users who demand reliability and strength. Designed and assembled in the USA, this heavy-duty model converts your tractor’s PTO horsepower into 85,000 continuous watts of clean, stable power — enough to operate large facilities, entire farms, or major construction sites with confidence and efficiency.
Operating at 1000 RPM PTO input, the W85PTOS-03 provides 354 amps of single-phase output at 120/240V, requiring a 170 HP tractor to deliver its full rated capacity. Equipped with an AS440 automatic voltage regulator (AVR) and brushless alternator design, it maintains ±5% voltage regulation and <5% total harmonic distortion (THD), ensuring utility-grade performance for sensitive electronics and high-demand electrical loads.
Winco’s legendary cast-iron gearcase with helical gears delivers long-term durability and smooth torque transfer. A large 3.5-inch frequency meter allows for precise PTO speed management, while the Square D premium circuit breakers provide industry-leading protection. The generator’s bonded neutral, ground lug, and protective PTO shield enhance safety during operation. Every Winco generator is 100% load-tested at the factory before shipment, ensuring unmatched quality and reliability.
Connectivity is robust and versatile with a 350A full-power Anderson plug (included), a NEMA 6-50 50A 240V outlet, and a NEMA 5-20 120V 20A duplex outlet. The W85PTOS-03 features Class H insulation, IP23-rated protection, and a lifting eye for easy transport and installation. With its heavy-duty steel frame and a 3-year commercial warranty, this PTO generator stands as one of the most powerful and reliable options in Winco’s lineup — ready to perform in any environment.
Key Features
-
85,000 continuous watts (single-phase 120/240V output)
-
1000 RPM PTO input – requires 170 HP tractor
-
Brushless alternator with AS440 AVR (±5% regulation)
-
Less than 5% THD – clean, stable power for sensitive electronics
-
Cast-iron gearcase with helical gears – durable and smooth operation
-
Premium Square D circuit breakers for superior protection
-
Large 3.5″ frequency meter for accurate PTO speed monitoring
-
Bonded neutral, ground lug, and protective PTO shield
-
Receptacles:
-
(1) NEMA 5-20 120V 20A duplex
-
(1) NEMA 6-50 240V 50A
-
(1) 350A full-power Anderson plug (included)
-
-
Class H insulation | IP23-rated enclosure | Lifting eye for transport
-
Dimensions: 49″ L × 18″ W × 27.3″ H | Weight: 1,056 lbs
-
Optional accessories: PTO trailer, drive shaft, manual transfer switch
-
100% factory load-tested | Assembled in the USA | 3-year commercial warranty
